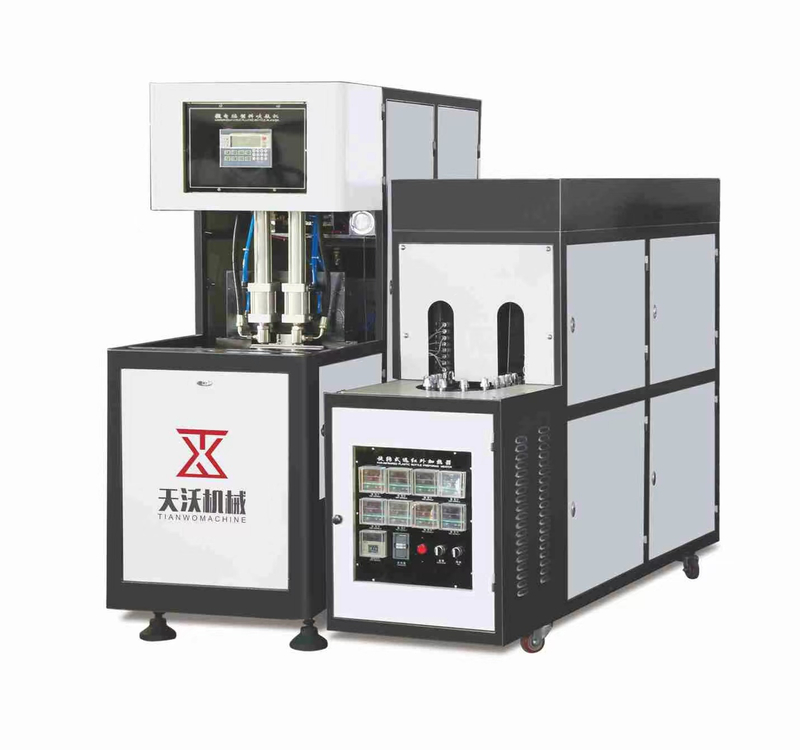

The semi-automatic blow molding machine utilizes pre-prepared plastic preforms or pellets, which are placed in the mold. By applying air pressure and utilizing airflow, the plastic preforms are expanded to take the shape of the mold.
The formed bottles are then removed from the mold and undergo a cooling and solidification process.
The semi-automatic blow molding machine finds wide applications in the packaging industry, particularly in the production of various shapes and sizes of plastic bottles or containers for food, beverages, oils, chemicals, and more.
The 5-liter plastic bottles have extensive use in household and industrial sectors, such as for liquid detergents, edible oils, chemicals, and other products.
TWB-5L | |||
Water bottles 2000CC theory output bottle line configuration table | |||
Bottle blowing machine | |||
Specification | Unit | TWB-5L | |
No. of Cavity | cav. | 2 | |
Cavity pitch | mm | 150 | |
Max. capacity | ml | 5000 | |
Heating pitch | mm | 47 | |
Preform holder | pcs | 36 | |
Preform neck(inner dia.) | mm | 28-100 | |
Preform height(max) | mm | 240 | |
Bottle diameter(max.) | mm | 240 | |
Bottle height(max) | mm | 360 | |
Heating ovens | unit | 4 | |
Infrared lamps | pcs | 40 | |
Max. heating power | kw | 32 | |
Specified power consumption | kw | 35 | |
High pressure air compressor | |||
Model No. | Unit | CWM-3.2/3.0 | |
Air capacity | m3/min | 1.6 | |
pressure | Mpa | 3.0 | |
Motor power | KW | 18.5*2 | |
High pressure freezing dryer equipment | |||
Model No. | Unit | NTGM-3.8/3.0 | |
Air capacity | m3/min | 3.8 | |
pressure | Mpa | 3 | |
air inlet temperature | ℃ | ≤80 | |
Motor power | KW | 0.65 | |
High pressure gasholder | |||
Model No. | Unit | 0.6/30 | |
volume | m3 | 0.6 | |
pressure | mpa | 3 | |
