1. Equipped with an advanced microcomputer control system to ensure consistent performance.
2. Box heater with infrared penetration performance. The prefabrication itself rotates, rotating along the track to ensure even, timely and reliable heating.
3. The width and the height of the heating cylinder and reflector can be adjusted to accommodate different sizes of prefabricated parts. Automatic heating control unit to ensure a constant temperature.
4. Each mechanical action is a safe mode with a self-locking device reset system in any troublesome situation.
5. All movements are in cylinder operation, with no pollution and low noise.
6. The design of the air road divides the pneumatic and blowing atmosphere into three parts to meet the different requirements of blowing and operation
7. Equipped with high pressure winding arm structure die lock to ensure extremely strong clamping force.
8. The machine can be operated either manually or automatically.
9. Safe, reliable and unique valve structure design ensures the smooth and reliable gas road. 10. The whole production process is automatically completed, with the advantages of low investment cost, high production efficiency, simple and safe operation, simple maintenance and so on.
11. The cooling system ensures the ideal cooling performance.
12. Simple installation and startup.
13. The rejection rate is less than 0.2%. The fuselage is made of steel pipe and steel plate, which is beautiful and rigid. There are sliding doors on both sides, which can be used by maintenance technicians.
Technical Parameter
TWB-20L | ||
Water bottles 20000 CC theory output bottle line configuration table | ||

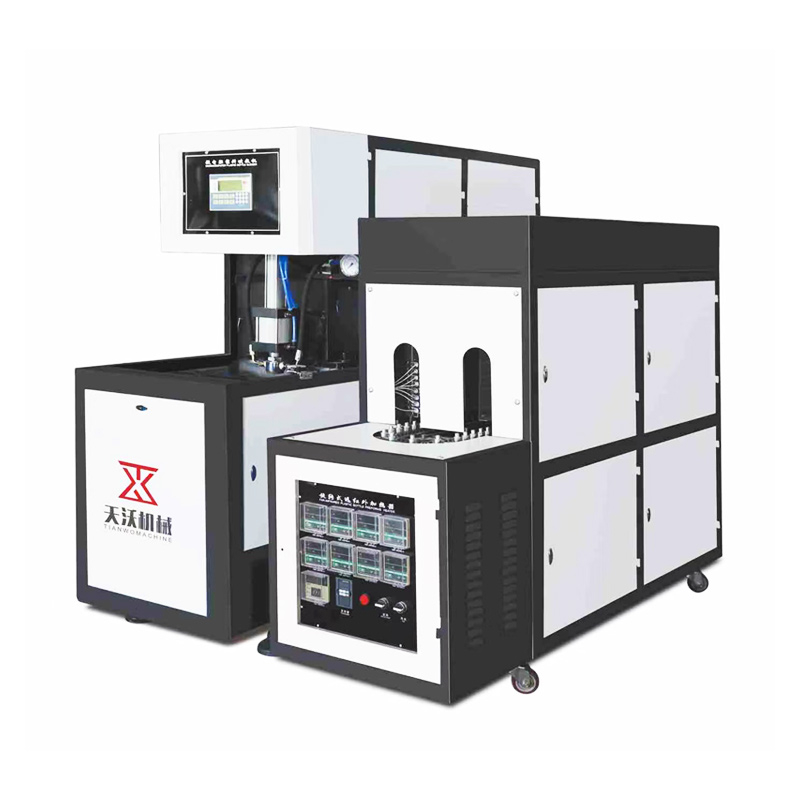

Bottle blowing machine | ||
Specification | Unit | TWB-20L |
No. of Cavity | cav. | 1 |
Max. capacity | l | 20L |
Heating pitch | mm | 114 |
Preform holder | pcs | 24 |
Preform neck(inner dia.) | mm | 38-80 |
Preform height(max) | mm | 280 |
Bottle diameter(max.) | mm | 380 |
Bottle height(max) | mm | 550 |
Heating ovens | unit | 4 |
Infrared lamps | pcs | 48 |
Max. heating power | kw | 40 |
Specified power consumption | kw | 40 |
Voltage | V | 380V(50Hz) |
