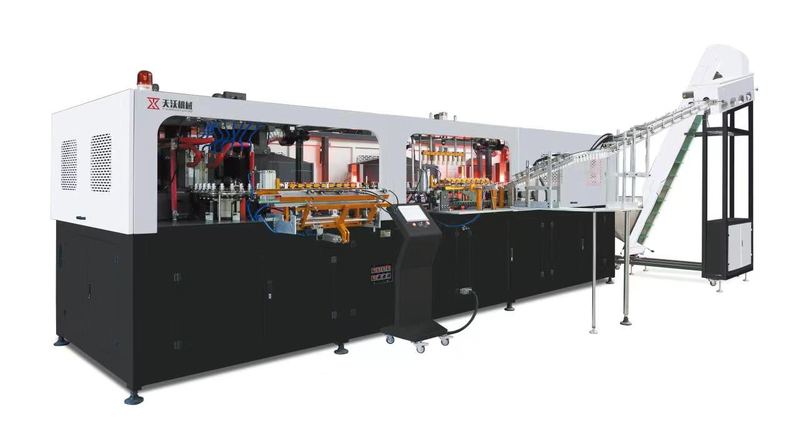

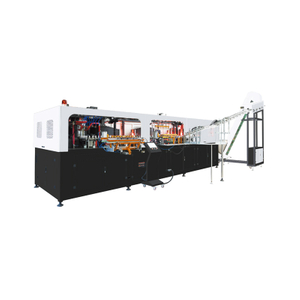

9-Cavity Fully Automatic Blow Molding Machine:
（1）High-speed production, efficient and reliable.
（2）Perfect for mass production of high-quality plastic bottles.
（3）Saves time and labor with its automated operation.
（4）Meeting industry standards with consistent output.
TWSF-9000 | |||
Water bottles 600 CC theory output bottle line configuration table | |||
Bottle blowing machine | |||
Specification | Unit | TWSF-9000 | |
No. of Cavity | cav. | 9 | |
Cavity pitch | mm | 76.2 | |
Max. capacity | ml | 600 | |
Heating pitch | mm | 76.2 | |
Preform holder | pcs | 198 | |
Preform neck(inner dia.) | mm | 15-38 | |
Preform height(max) | mm | 160 | |
Bottle diameter(max.) | mm | 65 | |
Bottle height(max) | mm | 260 | |
Heating ovens | unit | 6 | |
Infrared lamps | pcs | 48 | |
Max. heating power | kw | 96 | |
Specified power consumption | kw | 100 | |
Voltage | V | 380V(50Hz) | |
Weight | 6500ml(kg) | size | 5.8*1.95*1.9（m） |
