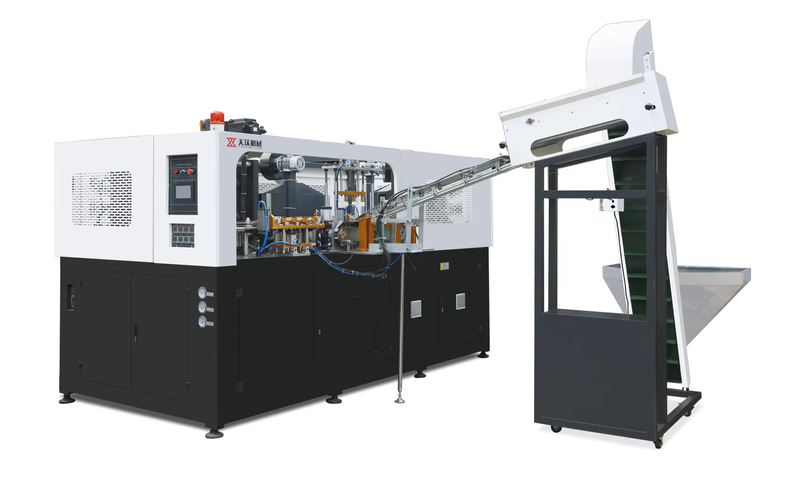

The 4-Cavity Full-automatic Blow Molding Machine is an advanced and efficient equipment designed for the production of high-quality plastic bottles.
It features a four-cavity configuration, allowing for the simultaneous production of four bottles at a time.
Precision and Consistency:
The full-automatic blow molding process of this machine ensures precise and uniform bottle production, maintaining consistent quality throughout the manufacturing process.
Fully Automated Processes:
Equipped with advanced control systems and sensors, the machine automates various stages of the production process, including preform feeding, heating, blowing, and bottle ejection, eliminating the need for manual intervention.
TWSF-4000 | |||
Water bottles 1500 CC theory output bottle line configuration table | |||
Bottle blowing machine | |||
Specification | Unit | TWSF-4000 | |
No. of Cavity | cav. | 4 | |
Cavity pitch | mm | 114.3 | |
Max. capacity | ml | 1500 | |
Heating pitch | mm | 114.3 | |
Preform holder | pcs | 94 | |
Preform neck(inner dia.) | mm | 26-98 | |
Preform height(max) | mm | 160 | |
Bottle diameter(max.) | mm | 100 | |
Bottle height(max) | mm | 360 | |
Heating ovens | unit | 5 | |
Infrared lamps | pcs | 40 | |
Max. heating power | kw | 120 | |
Specified power consumption | kw | 120 | |
Voltage | V | 380V(50Hz) | |
Weight | 5000(kg) | size | 4.9*1.9*2.2（m） |
