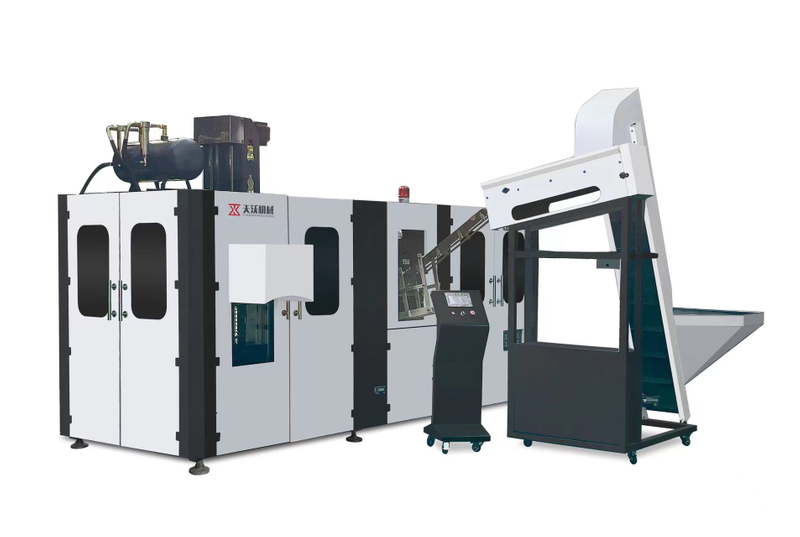

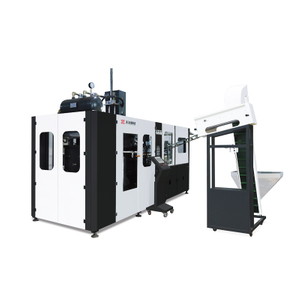

The 20L Full-automatic Blow Molding Machine is an advanced and efficient equipment designed for the production of high-quality plastic bottles with a capacity of 20 liters.
It is fully automated, eliminating the need for manual intervention during the entire production process.
The machine is capable of producing a wide range of plastic bottles, including containers for water, beverages, chemicals, and more, catering to diverse industry demands.
TWSF-20L-1 | ||
Water bottles 20000 CC theory output bottle line configuration table | ||
Bottle blowing machine | ||
Specification | Unit | TWSF-20L |
No. of Cavity | cav. | 1 |
Max. capacity | L | 20 |
Heating pitch | mm | 120 |
Preform holder | pcs | 60 |
Preform neck(inner dia.) | mm | 45-80 |
Preform height(max) | mm | 260 |
Bottle diameter(max.) | mm | 280 |
Bottle height(max) | mm | 520 |
Heating ovens | unit | 3 |
Infrared lamps | pcs | 45 |
Max. heating power | kw | 90 |
Specified power consumption | kw | 100 |
Voltage | V | 380V(50Hz) |
Main Machine Size | m | 6.0*1.8*2.2 |
