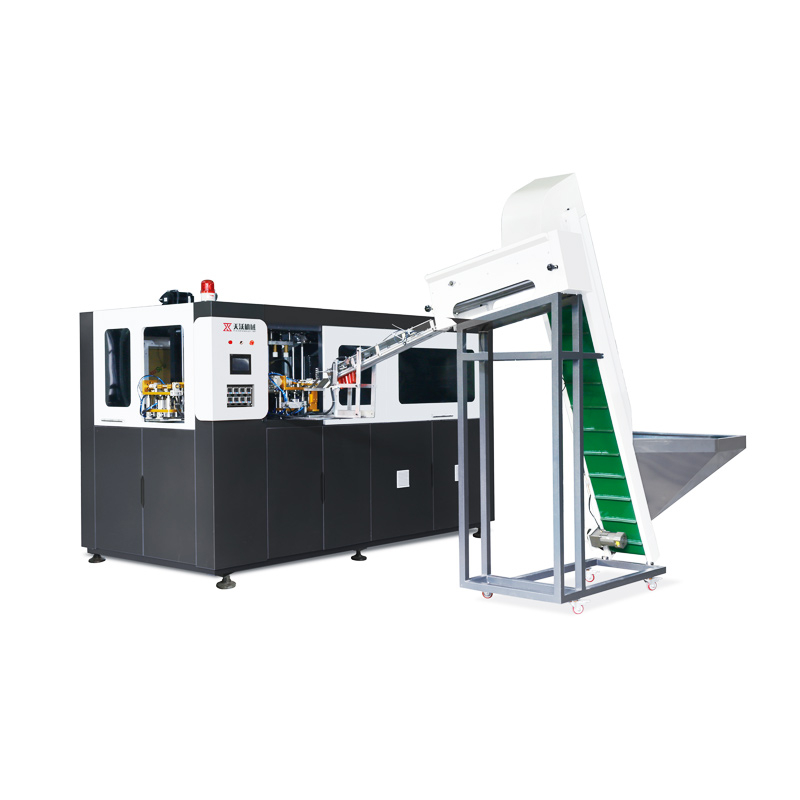

1.Using advanced microcomputer control system, stable performance;
2.Using infrared lamp heating, strong penetration, bottle blank rotation heating, rail revolution, uniform heating, fast and reliable;
3.The width and height of the lamp tube and reflective plate in the heating area can be adjusted to suit the heating of different structures, and have an automatic heating device to ensure the constant temperature of the drying channel;
4.Each mechanical action has a safe self-locking device, when a process failure, the program will automatically switch to the safe state;
5.Each action is driven by the servo system: stretch servo, shift servo, mode servo, embryo servo, not using the traditional cylinder, has the advantages of energy saving, stability, precise control of each part of the action;
6.Adopt high pressure and double curved arm connecting rod lock mode, mode lock force is strong;
7.The machine adopts four template structure, double open and double close, save the mold lock time, greatly improve the output of the machine, this structure is independently researched and developed by our company, with domestic design patent;
8.Gear rack are grinding oblique teeth, six times of vacuum quenching, six times of high precision grinding, hardness of 62, high hardness, high precision drives the machine stretch drive
9.The operation method is manual and automatic;
10.Unique valve position design, each part of the blowing valve action valve are using domestic well-known brands or foreign imported brands, quality safety and reliable, gas path at a glance;
11.The production process is all automated, with the advantages of low investment, high efficiency, convenient operation, simple maintenance and safety.
12.The cooling system achieves the desired cooling effect
13.Installation, easy to start
14.The scrap rate of adult bottles is less than 0.2%
Machine technical parameters
TWSF-4000 | |||
Water bottles 1500 CC theory output bottle line configuration table | |||
Bottle blowing machine | |||
Specification | Unit | TWSF-4000 | |
No. of Cavity | cav. | 4 | |
Cavity pitch | mm | 114.3 | |
Max. capacity | ml | 1500 | |
Heating pitch | mm | 114.3 | |
Preform holder | pcs | 94 | |
Preform neck(inner dia.) | mm | 26-98 | |
Preform height(max) | mm | 160 | |
Bottle diameter(max.) | mm | 100 | |
Bottle height(max) | mm | 360 | |
Heating ovens | unit | 5 | |
Infrared lamps | pcs | 40 | |
Max. heating power | kw | 120 | |
Specified power consumption | kw | 120 | |
Voltage | V | 380V(50Hz) | |
Weight | 5000(kg) | 尺寸size | 4.9*1.9*2.2（m） |
